Unveiling The Physical Wisdom of Polyurethane Timing Belts From Uliflex

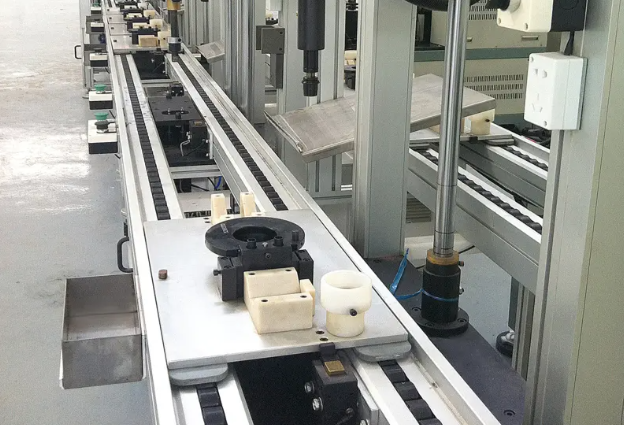

Polyurethane Timing Belts are the most common "invisible power link" in the transmission structure of automated production lines, 3D printers, and precision machine tools. It does not have the metallic texture of gears or the obvious impact sound when running like a chain, but relies on layers of physical logic hidden in materials and structures to achieve high-precision and low loss power transmission.

The physical properties of polyurethane materials themselves are the fundamental support for the performance of synchronous belts. As a high molecular polymer, polyurethane has a stable softening point between 50 ℃ and 120 ℃, which precisely covers the conventional working temperature range of most industrial scenarios. It will not deform easily like wax materials at room temperature, nor will it quickly soften and fail in continuous operation under frictional heating. Unlike brittle materials, the molecular chain structure of polyurethane provides it with a wide range of hardness adjustment space. Coupled with an outer wear-resistant coating, it can maintain the structural rigidity of the tooth shape, avoid tooth surface collapse under stress, and generate moderate elastic deformation when the belt is wound around the pulley, offsetting the small stress during installation and operation, making the belt less prone to cracking after long-term repeated bending.

The core transmission logic of timing belts breaks free from the limitations of traditional friction transmission. Ordinary V-belts rely on the frictional force of the contact surface to transmit power, and elastic sliding is inevitable during operation. Not only does the transmission ratio fluctuate, but long-term sliding also consumes a lot of energy. The polyurethane timing belt adopts the principle of meshing transmission, with trapezoidal teeth evenly distributed around the inner circumference of the belt, which precisely mesh with the grooves of the synchronous wheel. During operation, the belt teeth are completely embedded inside the grooves, completely eliminating the possibility of relative sliding. In addition, with the strong layer of steel wire or glass fiber embedded inside the belt body, the elongation rate of these materials is extremely low, and they can maintain pitch stability under long-term tension. When the driving wheel rotates 1 degree, the driven wheel will inevitably rotate 1 degree synchronously, achieving zero slip synchronous transmission. Its transmission efficiency can reach up to 98%, which is more than 15% energy-saving than ordinary friction belt transmission.

In the seemingly simple timing belt structure, there is also a clever design of mechanical balance hidden. When the timing belt is stationary, the initial tension is evenly distributed throughout the belt body to ensure that the belt teeth can be smoothly inserted into the tooth groove; After entering the load operation state, the tight and loose edges of the belt will form a stable tension difference, which is the effective tension for transmitting power. When designing, it is necessary to accurately calculate the distribution of centrifugal tension and axial force, in order to avoid the phenomenon of tooth jumping and crawling caused by insufficient initial tension, and to prevent excessive tension from causing the shaft and bearings to bear additional loads. The oil resistance and aging resistance of polyurethane materials also enable them to work stably in harsh working conditions with high dust and water vapor. When entering the tooth groove with teeth, the compressed air can also take away the dust in the gaps, reduce the wear of the meshing surface, and greatly extend the maintenance cycle of the equipment.

From the physical properties of materials to the mechanical design of meshing transmission, polyurethane timing belts ingeniously integrate the knowledge of polymer physics and mechanical transmission, and support the efficient operation of modern precision industry with an inconspicuous circular belt body.
