A belt size chart helps you pick the right industrial belt for your machine. It can be hard to choose the correct size because there are many types of industrial belts. These types are:
Flat belt conveyors
Modular belt conveyors
Cleated belt conveyors
Wire mesh belt conveyors
Timing belts
Magnetic conveyor belts
Slat conveyor belts
Spiral conveyor belts
Pallet conveyor belts
You need the right size to make sure conveyor belts and timing belts work well. This guide helps you feel sure about picking the right belt for your needs.
Use a belt size chart to pick the right belt for your machine. This helps you avoid expensive mistakes.Measure the belt’s length, width, and pitch with care. This makes sure the belt fits well and the machine works smoothly.Pick the right belt type for your machine’s needs. Some types are V-belts, timing belts, or conveyor belts.Check belts often for wear, tension, and alignment. This keeps machines safe and stops them from breaking down.Ask experts or companies like Uliflex for help if you need custom belts or have sizing problems. This helps you get the best results.
A belt size chart is a helpful guide. It lets you match the right industrial belt to your machine. The chart shows important sizes like width, thickness, and length. For timing belts and synchronous belts, it also shows tooth or groove shapes. Many charts use part numbers to make picking easier. For example, "5V500" tells you the belt’s width and length. This system helps you find the right belt fast.
Most belt size charts have:
Belt sizes: width, thickness, length, and shape
Tolerances: allowed size changes
Material details: rubber type, strength, and how long it lasts
Performance needs: how much it can carry, speed, and how well it resists wear
Testing and quality checks
You can find these details in standards like ANSI/RMA IP-20, DIN 7753, and ISO 9982. These rules help you pick belts that fit and work well in your machines. It does not matter if you need a timing belt or a conveyor belt.
Picking the right size from a belt size chart is very important. It keeps your equipment safe and working well. If a belt is too tight, it can hurt bearings, pulleys, and motors. Too much tension makes parts get hot and break early. A loose belt slips on pulleys and wastes power. This can make noise, shake the machine, and even start fires.
The right size keeps the belt tight and fitting well. This helps parts last longer and your machine runs smoothly. You will not need as many repairs or spend as much money. Good sizing also stops downtime and keeps your line moving. Using the right belt size chart helps your machines work better and last longer.
Industrial belts come in different types. Each type works best for certain machines and jobs. You need to know how they are different to pick the right one. The table below lists the main types, what makes them special, and where you usually see them:
Industrial Belt Category | Description | Typical Applications |
|---|---|---|
V-Belts | These belts have a wedge shape and fit into pulley grooves. They work well when you need strong force. | Large trucks, earth-moving machines, automotive engines. |
Timing Belts | These belts have teeth that fit into pulleys. This helps parts move together at the right time. | Car engines, CNC machines, robotics. |
Conveyor Belts | These belts are long and move things from place to place. They can be made from rubber, PVC, or plastic. | Mining, manufacturing, food processing, assembly lines. |
Profiled & Special Belts | These belts have special shapes or features for special jobs. | Packaging, food processing, heavy-duty machinery. |
V-belts are used in many machines that need steady power. The v-belt is shaped like a trapezoid. This shape helps it fit tightly in the pulley. It can handle heavy loads and does not slip easily. You see v-belts in car engines, air conditioners, and big machines. They are made from rubber or man-made materials with fabric for strength. If you want a belt that gives strong power, v-belts are a good pick. You should check the width and length to make sure it fits your machine.
Tip: Always measure the outside of your v-belt and its width to get the right size.
Timing belts help parts move together at the right time. The teeth on the belt fit into the pulley grooves. This stops slipping and keeps everything moving together. You use timing belts in car engines, CNC machines, and robots. Most timing belts are made from neoprene, polyurethane, or strong rubber. These materials make the belt last longer. If you need a belt for exact movement, timing belts are the best choice.

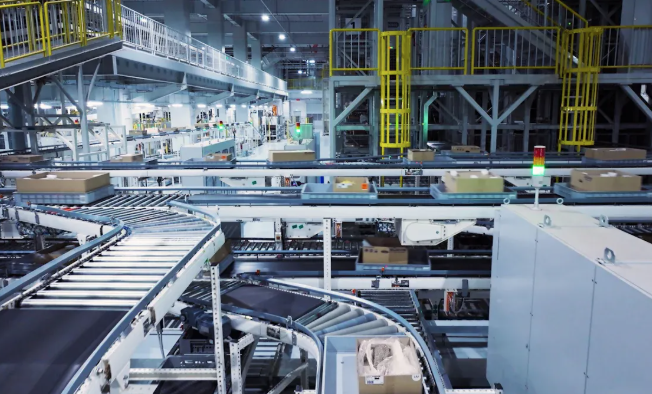

Conveyor belts carry things from one spot to another. You see them in factories, warehouses, and places that make food. There are many kinds, like flat, modular plastic, and cleated belts. Each kind is good for a different job. For example, food factories use conveyor belts made from PVC or PU because they are clean. You need to choose the right width, length, and material for your conveyor belt so it works for your job.
Profiled and special belts have shapes or features that are not common. Some have raised parts called cleats to help move things up a slope. Others use special materials to handle heat or chemicals. You find these belts in packaging, food, and big machines. If you need a belt made just for you, Uliflex can help design one that fits your needs.
Picking the right v-belt sizes keeps your machine safe and working well. There are many v-belt types, and each has its own sizing rules. The v-belt size chart helps you find the right belt for your machine. You should know the main types and how to read the codes before you buy a new belt.
Standard v-belt sizes use classic shapes. You will see letters like M, Z, A, B, C, D, and E. Each letter shows the shape and width of the v-belt. For example, an "A" section v-belt fits small pulleys. A "D" section is for heavy-duty machines. These belts are used in many places, like cars and factories. Some belts have notches, like AX or BX, to bend better and handle heat.
When you look at a v-belt size chart, you will see different measurements. These are outside belt length, inside belt length, pitch length, and effective length. Companies may use different rules, like RMA, ASAE, or SAE, for these sizes. This can make v-belt sizes seem hard to understand. Always check the chart and your machine’s manual to make sure you get the right belt.
Note: If you use Uliflex v-belts, you can get help and custom belts for any job.
Narrow and wedge v-belt sizes give more power in less space. These belts are taller compared to their width than classic v-belts. You can use them when you need to save space or run faster. Their design lets them move energy better and have less weight, so they spin easier.
Here is a table to help you compare narrow and wedge v-belt types:
Aspect | Narrow V-Belts | Wide (Wedge) V-Belts |
|---|---|---|
Height-to-Width Ratio | About 1:1.2 | More than 1:2 |
Power Transmission Capacity | More than classic V-belts with smaller width | Made for heavy power jobs |
Flexibility | Less flexible because they are thick; notches help | Usually notched to bend better |
Efficiency | Work better than classic V-belts because they bend easier and waste less energy | No clear efficiency data; used for changing speeds and heavy loads |
Application | Saves space, can run at higher speeds | Used in systems that change speed a lot |
Centrifugal Forces | Lower because they weigh less | N/A |
You will see narrow v-belt sizes in new machines, like textile machines or modern conveyor belts. Wedge v-belts are best for heavy-duty or changing speed machines.
Tip: If you switch to narrow or wedge v-belts, your machine can work better and break down less.
Most v-belts have measurement codes printed on them. These codes help you pick the right v-belt size when you need a new one. Here is how to read them:
Letters (A-E) show the size and shape of classic v-belts.
The number after the letter tells you the belt length, usually the inside size.
To find the outside size, add the width to the inside number.
Always look at the code on the belt. If it is gone or hard to read, measure the belt yourself.
Knowing the difference between inside and outside size is important for getting the right belt.
These codes follow industry rules, so it is easier to match and replace v-belts.
If you need help with codes or have a special machine, Uliflex can help and make custom v-belts. You can also look at other products like timing belts and conveyor belts for your whole system.
Remember: Using the right v-belt size chart and reading the codes carefully helps you avoid mistakes and keeps your machine running well.
When you look at a belt size chart, you will see different formats. These formats help you find the right industrial belt quickly. You can use these charts for many products, like a timing belt or a conveyor belt. Understanding the layout and codes makes your selection process much easier.
Most belt size charts use tables. These tables show important details in rows and columns. You will see headings like "Belt Type," "Width," "Length," and "Pitch." Each row gives you the measurements for a specific belt. Some tables also include the recommended pulley size or the material type.
Here is an example of a simple table layout:
Belt Type | Width (mm) | Length (mm) | Pitch (mm) |
|---|---|---|---|
Timing Belt | 10 | 500 | 5 |
V-Belt | 13 | 800 | — |
Conveyor | 20 | 1200 | — |
Tip: Always check the table for the exact measurements before you order a new belt.
You can find these tables on manufacturer websites, like Uliflex, or in product catalogs. They help you compare different belts side by side.
Many belt size charts use coding systems. These codes make it easy to identify the right belt. For example, a code like "5M-500" tells you the pitch and length of a timing belt. The first part shows the pitch, and the second part shows the length. Some codes also include letters for the belt type or material.
You should always read the legend or key that explains the codes. This helps you avoid mistakes. If you do not understand a code, you can ask Uliflex for help or check their product pages for more details.
Note: Learning how to read a belt size chart code saves you time and helps you avoid costly errors.
Using the right format and understanding the codes will help you choose the best industrial belt for your needs.
You need to know the correct belt length to keep your machines running smoothly. If you have an old belt, lay it flat and use a flexible tape measure to check the outside circumference. You can also look for the code printed on the belt, which often shows the inside length. If you do not have the old belt, you can still find the right belt length by measuring your machine.
Here is a simple way to measure belt length without the old belt:
Measure the center-to-center distance between the two pulleys.
Measure the diameter of each pulley.
Use the formula:L = (2 × C) + (π × (D1 + D2) / 2)
where L is the belt length, C is the center distance, D1 and D2 are pulley diameters, and π is about 3.14.
You can also wrap a string around the pulleys, mark it, and measure the string.
Tip: Always double-check your belt length before ordering a new timing belt or conveyor belt. This helps you avoid costly mistakes.
The width of your belt affects how much power it can carry and how well it fits in the pulley. You should measure the widest part of the belt. For V-belts, measure across the top. For flat or conveyor belts, measure from edge to edge. The right width keeps the belt stable and stops it from slipping. If you use a belt that is too wide or too narrow, your machine may not work well. Uliflex offers many width options for different machines and industries.
Pitch is very important for timing belts and synchronous belts. Pitch means the distance between the centers of two teeth on the belt. The pitch must match the pulley teeth exactly. If the pitch does not match, the belt can slip or wear out quickly. This can cause your machine to stop or break. When you choose a timing belt, always check the pitch size in the belt size chart. Matching the pitch keeps your machine running smoothly and helps the belt last longer.
Note: The right pitch ensures smooth power transfer and reduces vibration in your equipment.
Reading an industrial belt size chart helps you choose the right belt for your machine. You can follow these steps to make sure you get the correct size every time:
Find Key Dimensions
Look for the main measurements on the chart. These include top width, thickness, pitch length, outside length, and inside length. Each measurement tells you something important about how the belt will fit and work.
Measure the Belt if Needed
If the belt markings are hard to read or missing, use a flexible tape or a piece of string. Wrap it around the belt to find the outside length. This gives you a starting point for finding a replacement.
Check Width and Thickness
Use a caliper or a ruler to measure the top width and thickness at the middle of the belt. Accurate measurements help you match the belt to the chart.
Use Conversion Formulas
Some charts show pitch length, while others show outside or inside length. Use standard formulas to convert between them. For example, for classical v-belts, you can find pitch length by subtracting an adjustment factor from the outside length.
Understand the Numbering System
Belt codes like "A45" tell you the section and length. "A" is the section, and "45" is the outside length in inches. Knowing how to read these codes helps you pick the right belt fast.
Match Belt Profile to Pulley
Make sure the belt profile fits the pulley groove. If the shapes do not match, the belt will not work well.
Check Manufacturer Catalogs
Always look at the manufacturer’s catalog or the machine’s manual. Uliflex provides detailed charts and recommendations for each product, including timing belts and conveyor belts.
Use Matched Sets for Multi-Groove Drives
If your machine uses more than one belt, use matched sets. This keeps the belts wearing evenly and helps your machine run smoothly.
Verify Belt Type and Standards
Double-check the belt type, such as classical, narrow, or metric. Make sure you use the right size standard before you order.
Tip: Following these steps helps you avoid costly mistakes and keeps your equipment running at its best.
Belt size charts use symbols and codes to make information clear and easy to read. You need to know what these mean to choose the right industrial belt.
Section Letters
Letters like A, B, C, or D show the belt’s profile. Each letter matches a certain width and height.
Numbers
Numbers after the letter show the length. For example, "B60" means a B-section belt with a 60-inch outside length.
Pitch Codes
Timing belts use codes like "5M-500." "5M" shows the pitch (distance between teeth), and "500" is the length in millimeters.
Material Codes
Some charts use extra letters to show the material, like "PU" for polyurethane or "R" for rubber.
Special Symbols
You might see symbols for notched belts, joined belts, or belts with special coatings. These symbols help you find belts for special jobs, like food processing or high-speed machines.
Symbol/Code | Meaning | Example |
|---|---|---|
A, B, C | Belt section/profile | A45, B60 |
M, Z | Narrow or metric sections | M20, Z22 |
5M, 8M | Timing belt pitch (mm) | 5M-500 |
PU, R | Material type | PU-Timing |
X | Notched or cogged belt | AX, BX |
Note: Always check the legend or key on the chart. If you have questions, Uliflex’s technical team can help you understand any symbol or code.
Knowing how to read symbols and codes lets you pick the right timing belt, conveyor belt, or any other industrial belt with confidence. This skill saves you time and helps your machines work better.
You need the right tools to measure industrial belts accurately. Using proper instruments helps you find the correct size for your timing belt, conveyor belt, or v-belt. Here is a table that shows the most important tools and what they measure:
Tool Type | Measurement Parameter(s) | Key Features / Description |
|---|---|---|
Length Measuring Devices | Belt length | High accuracy, portable or stationary, suitable for many belt lengths |
Thickness Measuring Devices | Belt thickness | Measures thickness up to 40 mm, often with calibration options |
Belt Tension Instruments | Belt tension | Checks tension for v-belts, works on drive spans from 6 to 12 inches |
Frequency Measuring Instruments | Natural frequency of belt vibration | Shows belt tension by measuring vibration frequency, easy to use |
Wear Gauges | Wear and rib thickness | Checks wear and thickness of Poly-V belt ribs |
Profile Gauges | Belt section/profile | Helps you find the belt section when markings are missing |
Tip: Using these tools helps you avoid mistakes and keeps your machines running smoothly.
You can measure belts with simple steps. Follow these best practices to make sure your new belt fits your machine:
Measure the belt’s width with a straight ruler or fabric tape. This helps you find the right belt type, like Type A or Type B.
Check the belt’s depth by measuring from the outside edge to the inside edge. Do not rest the ruler on the side of the belt.
Find the total belt length by wrapping a fabric tape around the belt or rolling it along a ruler.
Measure the pulley slot to make sure the belt’s width and depth match the pulley.
Use your measurements to pick the correct replacement belt. Always check if your belt is a cogged type, like AX or BX.
Think about power needs, speed, and the environment when you choose a belt.
Inspect belts for wear, tension, and alignment often.
Keep the right tension. Too loose causes slipping. Too tight can damage bearings.
Check pulleys for wear and dirt to keep the belt gripping well.
Watch for heat, chemicals, or dust that could affect belt performance.
Note: Accurate measuring and regular checks help you get the best results from Uliflex industrial belts and keep your equipment working longer.
Industrial belts use different sizing standards in different places. These rules help you pick the right timing belt, conveyor belt, or v-belt for your machine. Here are some of the most common sizing systems:
US Standard Sizing
Classical V-belts use letters like A, B, C, D, and E.
Narrow or wedge belts use numbers such as 3V, 5V, and 8V.
Cogged belts have codes like AX, BX, and CX.
Fractional Horsepower (FHP) belts use codes like 2L, 3L, 4L, and 5L. The number tells you the top width in eighths of an inch.
US standards measure belt length in inches and use cross-section sizes for part numbers.
Metric Series Sizing
DIN and ISO standards use codes like SPA, SPB, SPC, and SPZ for narrow belts.
Classical metric belts use Y, Z, A, B, C, D, and E.
DIN classical belts may use 10X, 13X, or 17X.
Metric belts use millimeters for length and width. If you see an "X" in the code, the belt is cogged.
If you match belt shapes and sizes the right way, you stop problems like bad fit, extra wear, or losing power. Always look at the sizing chart before you order from Uliflex’s big selection of industrial belts.
Sometimes you need to change belt sizes between US and metric systems. This happens if your machines come from different countries. These changes are not always exact. For example, mining belts in old British colonies often use 6-inch (150 mm) steps. When you switch to metric, you might get a 600 mm belt instead of 609.6 mm. This small change is usually okay because machines allow for some wiggle room.
US and metric belts use different numbers for width and length. You should use charts to match sizes, but perfect matches do not happen often.
Small changes in belt length or shape can change how the belt fits and works. Always check the fit before you use a new belt.
Joined belts can be hard to match. Groove spacing may not be the same between US and metric pulleys. Sometimes you need custom belts or new pulleys.
Maintenance teams often accept small changes, use bigger equipment, or order custom belts from Uliflex to keep machines working well.
Always check how the belt sits, its tightness, and wear after any change. This helps your timing belts, conveyor belts, and other industrial belts work their best.
Sometimes, you need a belt that fits your machine just right. Uliflex can help with this by offering OEM and ODM services. You can work with Uliflex to make a new belt or change one they already have. This service works for timing belts, conveyor belts, and other special belts.
Here is how you get a custom belt:
Tell Uliflex what you need and share your machine’s details.
Their engineers look at your needs and pick the best design.
You get a price and a drawing to check and approve.
Uliflex makes a sample belt and sends it to you for testing.
If you like the sample, Uliflex makes more and ships them fast.
Uliflex answers quickly and helps you at every step. You get free advice and help with putting the belt on your machine.
You can pick special things for your belt, like cleats, flanges, backings, or sidewalls. Uliflex uses strong materials like polyurethane and rubber so your belt lasts longer. You can also ask for your own logo or special packaging.
Uliflex has helped many industries for over 20 years. Their belts are used in ceramics, glass, textiles, food and drink, cars, and medicine. Each industry needs something different. Uliflex can make special belts for hard jobs, like high heat or heavy loads.
You can count on Uliflex to:
Look at your machines and suggest the best belt.
Pick materials that fight wear, chemicals, or heat.
Add things like sensors or special coatings to help the belt work better.
Test every belt for strength and safety before sending it to you.
Industry | Common Belt Types | Special Features |
|---|---|---|
Food Processing | Conveyor, timing belts | Easy-clean, food-safe materials |
Automotive | V-belts, timing belts | High strength, low noise |
Textiles | Conveyor, profiled belts | Anti-static, flexible |
Uliflex’s special designs help you fix real problems and keep your machines working well.
You get a belt made just for your machine and your job. This helps you work better and stop your machines from breaking down. If you need something special, Uliflex’s team is ready to help you all the way.
You might make some mistakes when using industrial belts. These mistakes can stop your machine or cost you more money. Sometimes, they can even be unsafe. Here are some problems to watch for:
If you put too much weight on the belt, it can stretch or break. Always check the load and do not overload your conveyor belt or timing belt.
Running machines too fast can make belts slip or wear out. Always use the speed your equipment manual says.
Working in very hot, cold, or chemical places can hurt belts. Pick belt materials that fit your work area.
If you never check your belts, they will wear out faster. Plan regular checks to find problems early.
Complicated setups make it harder to fix belt problems. Make sure you put belts on right and line them up.
Not taking care of belts, like skipping checks or cleaning, can make them fail. Make a plan to check, oil, and clean your belts often.
If belts are not lined up, they wear out fast. Use tracking tools and adjustable parts to keep belts straight.
Dust and dirt can scratch belts. Keep your work area clean so belts work well.
If you do not know the right belt specs, you might pick the wrong one. Always read the manual and match the belt to your machine.
If workers do not know how to use belts, they can get hurt or use them wrong. Teach your team how to use belts safely and what to do in an emergency.
Tip: Doing regular checks and teaching your team helps stop most belt problems.
Getting the right belt size helps your machine work well. Here are some tips to help you pick the best industrial belt:
Measure the space between pulleys and the size of each pulley. Use these numbers to figure out the belt length.
Always check how wide and thick your old belt is before you buy a new one.
Make sure the belt shape fits the pulley groove. If it does not fit, the belt can slip or wear out fast.
Use Uliflex’s belt size charts and guides for timing belts, v-belts, and conveyor belts. These tools help you find the right belt for your job.
Think about where you work. If it is hot or has chemicals, pick belts made for those places.
Spread the load on the belt so it does not drift or wear out unevenly.
Plan regular checks to find worn or crooked belts early.
If you are not sure, ask Uliflex’s support team for help.
Note: Measuring carefully and checking your belts often helps you save money and keeps your machines working longer.
You might feel sure about picking a belt with size charts. But sometimes, your machine needs more than a normal belt. You should ask experts for help in some cases. For example, if you have a custom machine or a special setup, you need advice. If your belt must work in high heat, with chemicals, or carry heavy loads, get help. If you cannot find a new belt that matches your old timing belt or conveyor belt, talk to an expert. If your belts keep breaking or wearing out in strange ways, you should ask for help. If you want a belt that saves energy or lasts longer, experts can help you choose.
Professional companies like Uliflex give you many good reasons to ask for help. They can match your new belt to your pulley system so it fits right and does not break early. You keep your machine running at the right speed and power. Experts help you avoid wasting money on the wrong belts and stop your machine from being down. You also stay safer because you do not use the wrong belt. You get the newest tools and support to help you find the right belt fast.
Tip: If you have tricky sizing, special needs, or belts that keep failing, ask Uliflex’s team for help.
Uliflex and other top companies do more than just sell belts. They become your partner and help your business at every step. Here is what you get:
Many kinds of industrial belts, like v-belts, timing belts, flat belts, and multi-rib belts.
Lots of material choices, such as polyurethane, rubber, silicone, and neoprene, to fit your work area.
Extra strong belts with steel, polyester, or Kevlar® inside for more strength.
Special changes, like holes, slots, or coatings, to make the belt fit your needs.
Careful quality checks and safe materials for belts that work well.
Smart design help, like 3D pictures and ways to connect belts to your machines.
Full support for keeping belts working longer and teaching workers how to use them.
You also get help to match belts to your machines, so they fit and work safely. Uliflex’s team helps you pick the best conveyor belt or timing belt for your job, whether you work with food, cars, or clothes.
Note: Getting help from the maker gives you less stress, better work, and a safer place to work. If you need special belt sizes, Uliflex is ready to help you.
Picking the correct industrial belt size helps your machines work safely. Always use a good belt size chart and measure with care. If you have a special problem or need a custom timing belt, conveyor belt, or rubber belt, getting help from experts makes things easier.
For expert help and custom belts, check out Uliflex’s full line of industrial belts at Uliflex Products. Your machines need the best fit.
You should measure the distance between pulleys and check the width of your old belt. Use a belt size chart from Uliflex to match these numbers. If you need help, Uliflex’s support team can guide you.
You can ask Uliflex for a custom solution. They offer OEM and ODM services for timing belts, conveyor belts, and rubber belts. Custom belts help your machines work better and last longer.
You should always match the belt type and size to your machine. Using the wrong belt, like switching from a timing belt to a polyurethane belt, can cause damage. Always check with Uliflex before making changes.
Inspect belts every month for wear, cracks, or stretching.
Replace belts if you see damage or if your machine makes noise.
Regular checks keep your conveyor belt and other belts running safely.
Tip: Set a reminder to check your belts often for the best performance.
