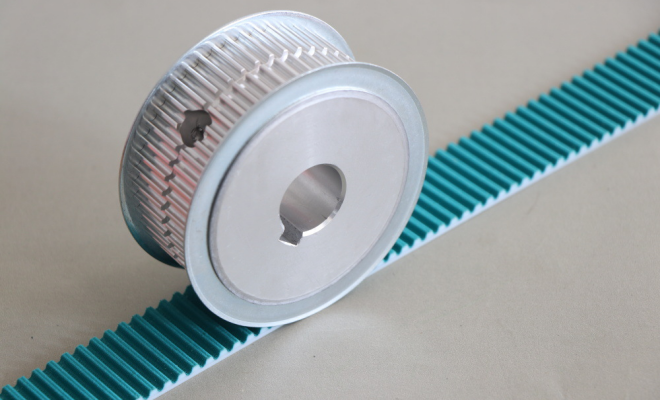

In the fields of industrial automation and smart manufacturing, timing belts have become core components for power transmission in equipment, thanks to their advantages of precise transmission, low noise, and high efficiency. However, over long-term operation, timing belts are prone to various failures, which not only shorten their service life but also may lead to equipment downtime, affecting production progress.
Based on 25 years of experience in industrial belt production, Uliflex Industial Belt has drawn this conclusion: Typical faults of synchronous belt drives mainly include fatigue fracture, belt tooth wear and shear, belt deviation and unilateral wear, skipped teeth, and abnormal noise. These faults directly affect the stability and lifespan of equipment operation. Let's analyze the causes of various classic synchronous belt drive faults one by one:
1. Fatigue fracture
This is the most common and potentially harmful form of failure. Under the long-term alternating stress (such as cyclic tension and repeated bending), the internal tensile layer material (such as steel wire rope or aramid fiber) of the timing belt gradually develops micro-cracks and expands. The initial cracks are subtle and difficult to detect. As the operation time increases, the cracks continue to expand, eventually leading to overall fracture. Such failures often occur in automated production lines with continuous high-load operation, which are sudden and prone to cause sudden equipment downtime. For example, in the conveyor system of an automated production line, if the aging timing belt is not replaced in time, it is extremely easy to cause sudden downtime.
2. Belt tooth wear and shear breakage
Tooth wear and shear failure are also common faults.
A. Belt tooth wear: It is primarily caused by sliding friction during the meshing process. If there are hard impurities such as dust and sand particles in the environment, abrasive wear will occur, accelerating the loss of tooth surface. When the belt teeth mesh with the pulley, sliding friction itself will cause some wear. If the equipment operates in a dusty environment and hard particles penetrate into the meshing surface, it will accelerate the wear of the tooth surface, leading to a decrease in transmission accuracy.
B. Tooth-breaking: This typically occurs due to instantaneous overload or impact loading, such as equipment jamming or rapid start-stop, causing the tooth root to experience shear stress exceeding the material's limit and resulting in fracture. In lithium battery manufacturing equipment, if the feeding amount suddenly increases, leading to a sharp increase in the load on the timing belt, such failures may occur, affecting the processing accuracy of the battery cells.
Misalignment and unilateral wear are common issues in the operation of timing belts, often stemming from improper installation and maintenance.
When the timing belt runs, it deviates to one side, causing severe wear on one side. Common reasons include:
A. The axes of the driving wheel and the driven wheel are not parallel;
B. Excessive deviation in center-to-center distance or improper installation;
C. The pulley end face runout exceeds the tolerance or the positioning is loose.
If the axes of the driving pulley and the driven pulley are not parallel and the center-to-center distance deviation is too large, the synchronous belt will be unevenly stressed and will deviate to one side during operation, leading to unilateral wear. In addition, if the pulley end face runout exceeds the tolerance and the positioning is not firm, it will cause shaking during operation, which will also exacerbate the deviation and local wear. In the transmission system of photovoltaic equipment, insufficient installation accuracy can cause deviation, leading to a shift in the position of silicon wafer transmission and affecting subsequent processing steps. Long-term deviation not only shortens the lifespan of the belt but may also cause belt teeth to fall off or break.
The tooth-skipping fault directly affects the transmission stability. When the tension of the timing belt is insufficient or the load suddenly increases, the belt teeth will disengage from the gear teeth, causing transmission failure. Tooth-skipping can lead to misalignment of the transmission ratio, affecting the positioning accuracy of precision equipment. It is commonly seen in working conditions with frequent start-stop operations or large load fluctuations. In sorting equipment for warehousing and logistics, tooth-skipping can cause misalignment of the sorting mechanism, resulting in incorrect sorting and missed sorting of goods, thereby reducing sorting efficiency.
Excessive noise often indicates installation or operational issues with the system, such as misalignment of the two shafts, damaged bearings, improper tension, or poor dynamic balance of the pulley. Additionally, aging, cracking, or the presence of foreign objects inside the belt may also cause high-frequency howling or slapping sounds.
Suggestions for fault prevention from Uliflex
A. Standard installation: Ensure that the pulley axes are parallel and the center-to-center distance is accurate, avoiding twisting.
B. Scientific selection: Choose the appropriate model based on load, speed, and environment, with preference given to high-strength, wear-resistant synchronous belts.
C. Regular maintenance: Check the tension, clean the pulley, and replace aging parts in a timely manner, especially in dusty and oily environments where enhanced protection is necessary.
In addition, Uliflex Industrial Belt also suggests you.For these typical faults, it is necessary to start prevention and control from multiple aspects such as installation, selection, and maintenance. During installation, the parallelism of the belt wheel axis must be strictly calibrated, and the synchronous belt model suitable for the working conditions should be selected. Regular inspections should be conducted on the tension and wear conditions, and aging components should be replaced in a timely manner. Only by establishing a full-process control mechanism can synchronous belt faults be effectively avoided, ensuring efficient and stable operation of the equipment.
