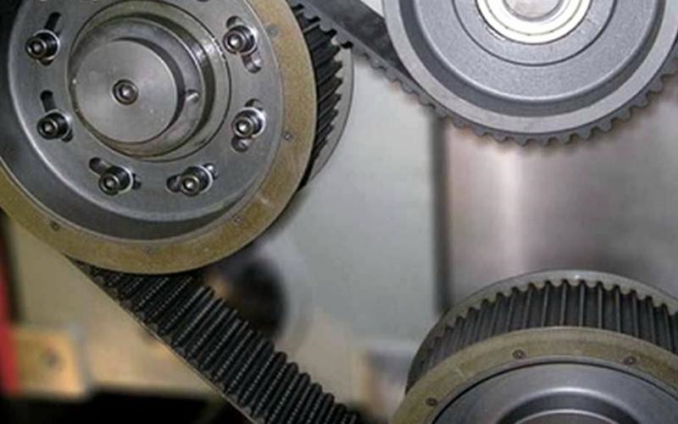

Uliflex Provides You with Solutions for Timing Belt Tooth Jumping

Many timing belt users have likely encountered the issue of belt tooth jumping. If this problem occurs frequently, production workshops have to shut down for inspections, significantly affecting the efficiency of enterprise production. Based on over 20 years of experience in timing belt manufacturing, Uliflex has proposed the following solutions to address belt tooth jumping.

The fundamental causes of timing belt tooth jumping lie in improper tension, component mismatch, installation deviation, and insufficient maintenance. To solve this problem, a systematic investigation is required. Based on the fault manifestations, precise treatment can be carried out from the following five core dimensions:

1. Prioritize checking and adjusting the tension (the most common cause)

Too little tension is the primary cause of skipped teeth, while too much tension accelerates wear and tear, necessitating precise control:

a. Too low tension: Insufficient friction between the timing belt and the pulley, which can easily cause slipping and skipped teeth during sudden load changes.

b. Excessive tension: It leads to deformation of the belt teeth and increased bearing load, which in turn reduces the meshing accuracy.

Solution:

a. Use a tension meter to set the initial tension according to the manufacturer's specifications.

b. After installing the new belt, it is necessary to perform three fine adjustments of tension after 24 hours, 72 hours, and one week of operation.

c. When no professional tools are available, the method of digital pressure can be used for a rough judgment (for reference only).

2. Investigate installation accuracy issues

Uneven stress caused by installation deviation is a hidden yet highly dangerous factor:

a. Non-parallelism of two axes: The error should be ≤0.1mm per 100mm, otherwise it is prone to deviation and local skipped teeth.

b. Misalignment of pulley end faces: Even if the parallelism is qualified, end face misalignment can still cause tooth creeping.

Solution:

a. Calibrate using a ruler or a laser alignment instrument.

b. Check whether the center distance conforms to the design specifications, avoiding being either too long or too short.

3. Check the matching and wear of the timing belt and pulley

The aging of components or incorrect selection can directly lead to meshing failure:

a. Wear of belt pulley teeth: Tooth chipping and dirt accumulation on the tooth surface can disrupt the meshing, requiring polishing or replacement.

b. Aging of timing belt: tooth surface cracking, tensile deformation (especially for polyurethane belts) are prone to tooth skipping.

c. Improper selection:

Inconsistent pitch, insufficient width, or low material grade.

It is recommended that the number of teeth on the belt pulley be ≥18 to enhance the meshing overlap coefficient.

Solution:

a. Replace the timing belt with the same brand and batch to avoid inconsistent tooth pitch errors.

b. Preferably use wear-resistant and anti-aging polyurethane or rubber composite materials.

4. Eliminate environmental and operational interference

External factors are often overlooked yet have a significant impact:

a. Oil stains and dust: Polluting the tooth surface can reduce the friction coefficient, leading to slipping and tooth jumping.

b. Foreign object insertion: Metal shavings and dust disrupt the meshing relationship.

c. Frequent start-stop operations or impact loads: Instantaneous torque exceeding limits leads to gear jumping.

Solution:

a. Regularly clean the surfaces of the pulley and the timing belt.

b. Install protective covers to prevent the intrusion of oil and dust.

c. Optimize the control program to reduce rapid start-up and shutdown.

5. Systematic prevention and improvement measures

a. Installing a tensioning wheel: Increase the wrap angle to enhance tensioning stability, especially suitable for scenarios where the center distance cannot be adjusted.

b. Select high-rigidity timing belts: increase tensile modulus and reduce elastic slippage.

c. Monitoring and maintenance mechanism:

Establish a routine inspection system to regularly check tension, wear, and alignment status.

A tension monitoring device can be installed to enable early warning.

Based on the tooth skipping solution provided by Uliflex, users can systematically investigate the causes of tooth skipping and address them accordingly, thereby preventing future occurrences of timing belt tooth skipping.
