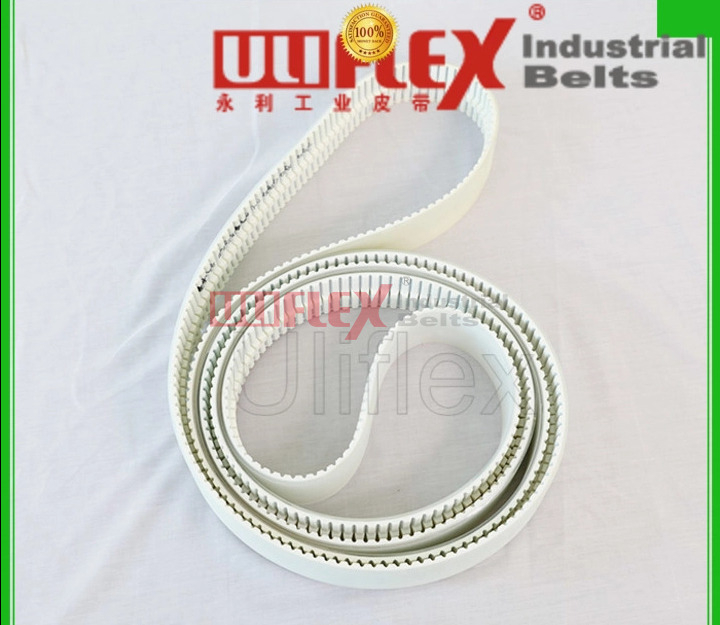

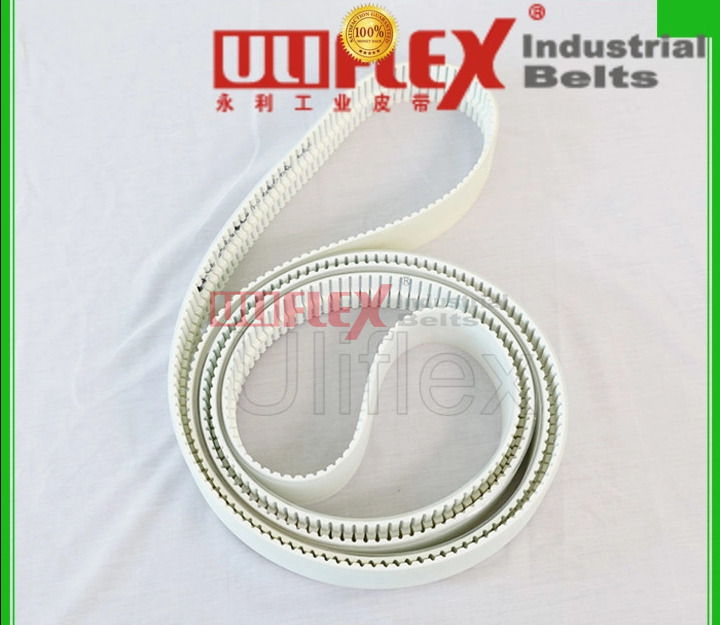

China timing belt factory for industry

Quantity:



Inquire Add to Basket

Trade Terms:
EXW, FOB, CIF, CNF, DDU, DDP, etc.
Supply Ability:
100pcs / Month
Port:
Foshan, China
Payment:
T/T, Western union.
Packaging Detail:
Carton Packing
Shipping:
BY SEA, BY AIR OR BY EXPRESS

Description

Company Advantages
1. Advanced computer-aided technologies are applied in Uliflex timing belt design. Its phototype is created using CAD and CAM technologies by the designers.
2. Due to the implementation of a complete quality management system, the product meets the most stringent quality standards.
3. This product is less likely to make mistakes in tasks, therefore leading to fewer errors as compared to human touch.

Company Features
1. Foshan Uliflex Transmission Technology Co., Ltd has introduced the most advanced technology to producing high quality timing belt .
2. rubber belt is widely recognized for its high quality.
3. The core value of Foshan Uliflex Transmission Technology Co., Ltd is working diligently. Contact! Providing the excellent service is the core competitiveness of Uliflex. Contact!

Tooth Profile & Size

SIZES:

Type	Pitch Pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)	Angle β°	Details
MXL	2.032	0.51	1.14	40	Details
XXL	3.175	0.76	1.52	50	Details
XL	5.080	1.27	2.30	50	Details
L	9.525	1.91	3.60	40	Details
H	12.70	2.29	4.30	40	Details
XH	22.225	6.35	11.20	40	Details
XXH	31.750	9.53	15.70	40	Details
T2.5	2.5	0.7	1.30	40	Details
T5	5	1.20	2.20	40	Details
T10	10	2.50	4.50	40	Details
T20	20	5.00	8.00	40	Details
AT5	5	1.20	2.70	50	Details
AT10	10	2.50	5.00	50	Details
AT20	20	5.00	9.00	50	Details

Curvilinear Tooth Profile

Type	Pitch Pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)	Angle β°	Details
HTD	2M	2	0.75	1.36	Details
	3M	3	1.17	2.4	Details
	5M	5	2.06	3.8	Details
	8M	8	3.36	6.00	Details
	14M	14	6.02	10.00	Details
	20M	20	8.4	13.20	Details
STPD/STS	S2M	2	0.76	1.36	Details
	S3M	3	1.14	2.20	Details
	S4.5M	4.5	1.71	2.81	Details
	S5M	5	1.91	3.4	Details
	S8M	8	3.05	5.3	Details
	S14M	14	5.3	10.2	Details
RPP/HPPD	2M	2	0.76	1.36	Details
	3M	3	1.15	1.9	Details
	5M	5	1.95	3.5	Details
	8M	8	3.2	5.5	Details
	14M	14	6.00	10	Details
